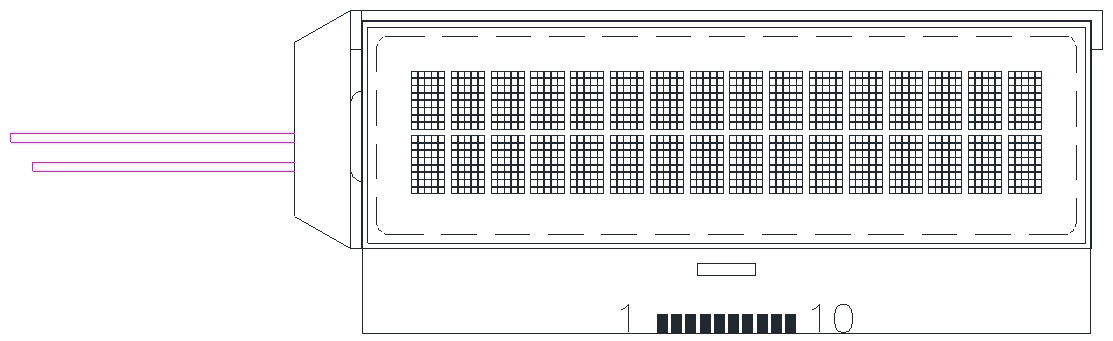

PJC1602A

Model:PJC1602A
Download

Item

Contents

Unit

Display format

16 Characters x 2 Lines

--

LCD duty

1/16

--

LCD bias

1/5

--

LCD voltage

6.0

V

Controller/Driver

SPLC792A

--

Module size (W x H)

72.0 x 28.7

mm

Viewing area (W x H)

62.4 x 17.6

mm

Character size (W x H)

2.95 x 5.15

mm

Dot size (W x H)

0.55 x 0.60

mm

Dot pitch (W x H)

0.60 x 0.65

mm



Upgrade your data presentation with our Monochrome LCM_Character Type Display. Featuring a format of 16 characters x 2 lines, it provides a comprehensive view of essential information.

With a 1/16 LCD working cycle and a 1/5 LCD field bias, our display ensures smooth performance without flickering. Operating at 6.0 V, it delivers optimal performance while conserving energy.

Equipped with the SPLC792A controller or an equivalent product, it guarantees precise and reliable data presentation.

The 72.0x28.7 mm module size and 62.4x17.6 mm visible area offer ample space for clear and legible display.

Each character measures 2.95x5.15 mm, ensuring readability even in limited space. With a pixel size of 0.55x0.60 mm and a pixel pitch of 0.60x0.65 mm, our display delivers sharp and well-defined details.
