PQG1203B1
|
Item |
Contents |
Unit |
|
Display format |
128 × 32 |
dots |
|
LCD duty |
1/32 |
-- |
|
LCD bias |
1/6 |
-- |
|
LCD voltage |
5.0 |
V |
|
Controller/Driver |
AT1520OA |
-- |
|

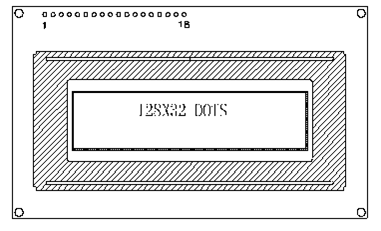

Module size (W x H) |
110.0 × 65.0 |
mm |
|
Viewing area (W x H) |
76.0 × 25.2 |
mm |
|
Dot size (W x H) |
0.52 × 0.52 |
mm |
|
Dot pitch (W x H) |
0.57 × 0.57 |
mm |
With an impressive 128x32 dots display format, this LCM_Graphic Type ensures your graphics and images are presented with exceptional clarity and precision.
The LCD operates with a fast 1/32 working cycle, providing smooth transitions and reducing motion blur, making it perfect for dynamic visual content.
The 1/6 field bias on the LCD enhances contrast and improves visibility, ensuring your graphics stand out with vibrant colors and sharp details.
Operating at a reliable 5.0 V, our display guarantees consistent performance and energy efficiency, making it suitable for various applications.
The AT1520OA controller/drive ensures seamless data processing and efficient content updates, enabling you to display real-time information effortlessly.
With a module size of 110.0x65.0 mm and a visible area of 76.0x25.2 mm, our LCM_Graphic Type provides ample display space while maintaining a compact form factor.
Each pixel measures 0.52x0.52 mm, delivering clear and well-defined graphics that captivate your audience.
The pixel pitch of 0.57x0.57 mm ensures precise and accurate visuals, making our Monochrome LCM_Graphic Type ideal for graphic-intensive applications.
