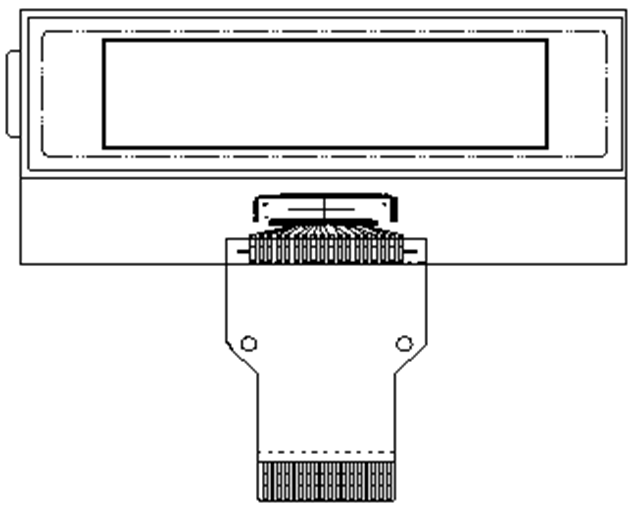

PHG1203D1

Model:PHG1203D1
Download

Item

Contents

Unit

Display format

128 × 32

dots

LCD duty

1/33

--

LCD bias

1/6

--

LCD voltage

6.5

V

Controller/Driver

ST7565R

--

Module size (W x H)

42.0 × 17.66

mm

Viewing area (W x H)

39.0 × 8.66

mm

Dot size (W x H)

0.22 × 0.22

mm

Dot pitch (W x H)

0.24 × 0.24

mm



With an impressive display format of 128x32 dots, this LCM_Graphic Type offers exceptional visual clarity and precision, enabling you to present complex graphics and detailed content with utmost clarity.

Experience superior performance with a lightning-fast 1/33 LCD working cycle, ensuring smooth transitions and minimal flickering, providing a comfortable viewing experience even during fast-paced visuals.

The 1/6 field bias on the LCD enhances contrast and brightness, resulting in stunning visuals that capture attention and make your content stand out.

Operating at a reliable 6.5 V, our display offers unmatched performance and energy efficiency, making it a perfect fit for various applications where high performance is required.

Equipped with the state-of-the-art st7565r controller/drive, you can expect rapid data processing and seamless content updates, ensuring your graphics are always up-to-date and captivating.

With a compact module size of 42.0x17.66 mm and a visible area of 39.0x8.66 mm, our LCM_Graphic Type is designed to fit seamlessly into your projects without compromising on display quality.

Each pixel is precisely engineered, measuring 0.22x0.22 mm, guaranteeing sharp and clear graphics that will leave a lasting impression on your audience.
