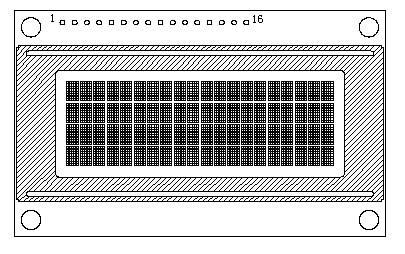

PQC2004DW
|
Item |
Contents |
Unit |
|
Display format |
20 Characters x 4 Lines |
-- |
|
LCD duty |
1/16 |
-- |
|
LCD bias |
1/5 |
-- |
|
LCD voltage |
4.5 |
V |
|
Controller/Driver |
ST7066U or Equivalent |
-- |
|
Module size (W x H) |
77.0 x 47.5 |
mm |
|
Viewing area (W x H) |
60.0 x 22.2 |
mm |
|
Character Size (W x H) |
2.30 x 4.03 |
mm |
|
Dot size (W x H) |
0.42 x 0.46 |
mm |
|
Dot pitch (W x H) |
0.47 x 0.51 |
mm |
Featuring a spacious 20-character x 4-line format, this display provides ample room for conveying extensive information with utmost clarity and precision.
With a 1/16 LCD working cycle, you can expect smooth transitions and flicker-free performance, ensuring a seamless and enjoyable viewing experience for your audience.
The 1/5 field bias of the LCD enhances its visual performance, delivering consistent and vibrant image quality across all four lines.
Operating at a reliable 4.5 V, our display strikes the perfect balance between performance and energy efficiency, making it ideal for various applications.
Powered by the dependable ST7066U controller or an equivalent, you can rely on lightning-fast data processing and accurate updates for real-time, dynamic display content.
With a module size of 77.0x47.5 mm and a generous visible area of 60.0x22.2 mm, our display offers a compact design without compromising on display real estate.
Each character boasts a substantial size of 2.30x4.03 mm, ensuring clear and legible text for easy readability, while the pixel size of 0.42x0.46 mm and pixel pitch of 0.47x0.51 mm guarantee sharp and vibrant visuals.
