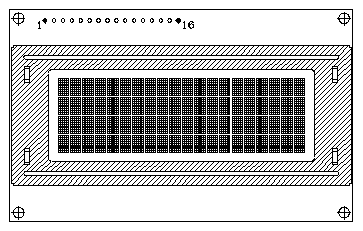

PQC2004A6W
|
Item |
Contents |
Unit |
|
Display format |
20 Characters x 4 Lines |
-- |
|
LCD duty |
1/16 |
-- |
|
LCD bias |
1/5 |
-- |
|
LCD voltage |
4.7 |
V |
|
Controller/Driver |
ST7066U or Equivalent |
-- |
|
Module size (W x H) |
98.0 x 60.0 |
mm |
|
Viewing area (W x H) |
76.0 x 26.0 |
mm |
|
Character size (W x H) |
2.95 x 4.75 |
mm |
|
Dot size (W x H) |
0.55 x 0.55 |
mm |
|
Dot pitch (W x H) |
0.60 x 0.60 |
mm |
With an impressive 20-character x 4-line format, this display allows you to convey extensive information in a concise and efficient manner.
The 1/16 LCD working cycle and 1/5 field bias ensure smooth and flicker-free performance, delivering a seamless and engaging display experience.
Operating at 4.7 V, our display strikes the perfect balance between performance and energy efficiency, making it an excellent choice for a wide range of applications.
Powered by the reliable ST7066U controller or equivalent, you can count on fast data processing and precise updates, ensuring real-time and accurate information display.
The module size of 98.0x60.0 mm and a visible area of 76.0x26.0 mm provide ample space for showcasing content while maintaining a compact form factor.
Each character boasts a generous size of 2.95x4.75 mm, guaranteeing legible and well-defined text, while the pixel size of 0.55x0.55 mm and pixel pitch of 0.60x0.60 mm deliver sharp and vibrant visuals.
