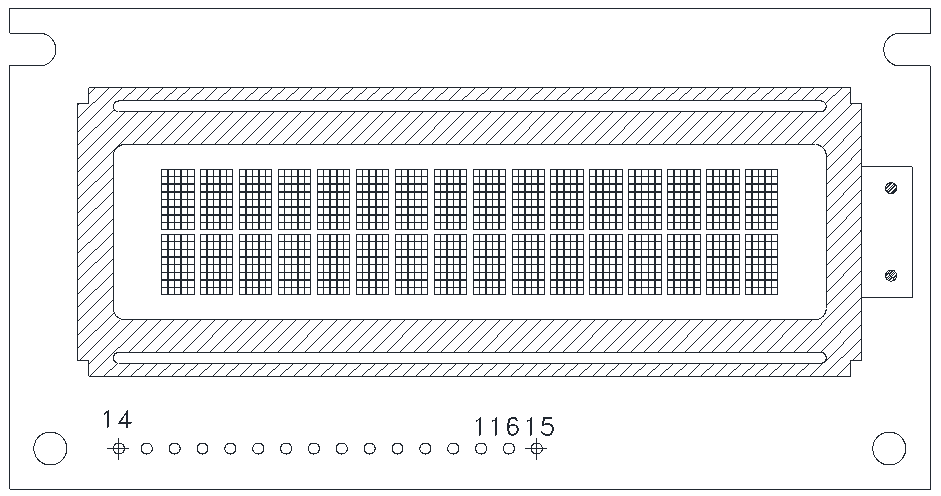

PQC1602F2
|
Item |
Contents |
Unit |
|
Display format |
16 Characters x 2 Lines |
-- |
|
LCD duty |
1/16 |
-- |
|
LCD bias |
1/5 |
-- |
|
LCD voltage |
4.7 |
V |
|
Controller/Driver |
ST7066U or Equivalent |
-- |
|
Module size (W x H) |
84.0 x 44.0 |
mm |
|
Viewing area (W x H) |
64.5 x 16.0 |
mm |
|
Character size (W x H) |
2.95 x 5.55 |
mm |
|
Dot size (W x H) |
0.55 x 0.65 |
mm |
|
Dot pitch (W x H) |
0.60 x 0.70 |
mm |
Featuring a 16-character x 2-line format, this display ensures ample space for conveying important information in a concise and easily readable manner. The 1/16 LCD working cycle and 1/5 LCD field bias guarantee smooth and flicker-free operation, providing an optimal viewing experience.
Operating at a low voltage of 4.7 V, our display is not only energy-efficient but also offers stable and reliable performance, perfect for various applications. Equipped with the highly efficient ST7066U controller or an equivalent product, you can trust in its seamless data processing capabilities.
The module size of 84.0x44.0 mm and a visible area of 64.5x16.0 mm ensure a wide display space for your content. Each character measures 2.95x5.55 mm, guaranteeing clear and legible text display.
With a pixel size of 0.55x0.65 mm and pixel pitch of 0.60x0.70 mm, our display delivers crisp images and sharp details, enhancing the overall visual quality.
