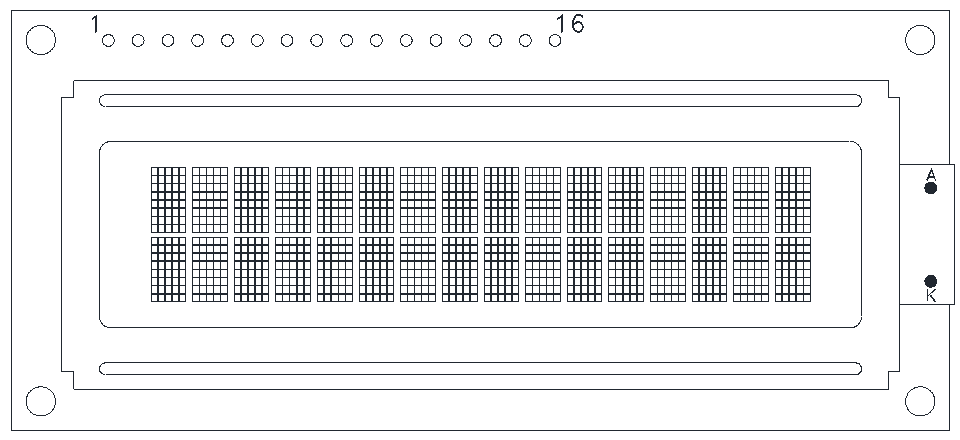

PQC1602DW

Model:PQC1602DW
Download

Item

Contents

Unit

Display format

16 Characters x 2 Lines

--

LCD duty

1/16

--

LCD bias

1/5

--

LCD voltage

4.7

V

Controller/Driver

ST7066U or Equivalent

--

Module size (W x H)

80.0 x 36.0

mm

Viewing area (W x H)

65.0 x 16.0

mm

Character size (W x H)

2.95 x 5.55

mm

Dot size (W x H)

0.55 x 0.65

mm

Dot pitch (W x H)

0.60 x 0.70

mm



With a format of 16 characters x 2 lines, this display provides ample space to showcase important data in a clear and organized manner. The 1/16 LCD working cycle and 1/5 LCD field bias ensure smooth and stable performance, eliminating any flickering.

Operating at 4.7 V, our display offers optimized power efficiency while delivering consistent and reliable results. Equipped with the advanced ST7066U controller or an equivalent product, you can trust in its precise data handling capabilities.

The 80.0x36.0 mm module size and 65.0x16.0 mm visible area provide enough room for your content to be easily seen and understood. Each character measures 2.95x5.55 mm, enabling crisp and legible text presentation.

The pixel size of 0.55x0.55 mm and pixel pitch of 0.60x0.70 mm ensure sharp details and excellent image quality.
