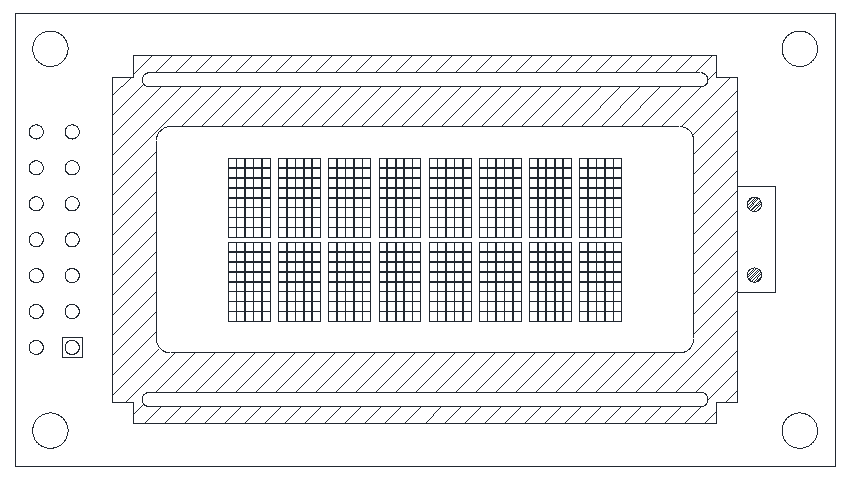

PQC0802B2
|
Item |
Contents |
Unit |
|
Display format |
8 Characters x 2 Lines |
-- |
|
LCD duty |
1/16 |
-- |
|
LCD bias |
1/5 |
-- |
|
LCD voltage |
4.7 |
V |
|
Controller/Driver |
ST7066U or Equivalent |
-- |
|
Module size (W x H) |
58.0 x 32.0 |
mm |
|
Viewing area (W x H) |
38.0 x 16.0 |
mm |
|
Character size (W x H) |
2.96 x 5.56 |
mm |
|
Dot size (W x H) |
056 x 0.66 |
mm |
|
Dot pitch (W x H) |
0.60 x 0.70 |
mm |
Featuring a display format of 8 characters in 2 rows, this module provides a concise and organized presentation of crucial data, enabling seamless monitoring and control.
With a 1/16 LCD working cycle and a 1/5 LCD field bias, this display ensures smooth and reliable performance, delivering consistent visuals without flickering or distortion.
Operating at 4.7 V, the LCD work voltage is optimized for efficient power consumption, ensuring extended usage time and enhanced energy efficiency.
Equipped with the ST7066U controller or an equivalent product, this display guarantees precise and reliable control, ensuring smooth and accurate data presentation.
With a module size of 58.0x32.0 millimeters, the display module is compact and easy to integrate into your device, making it suitable for various applications.
The visible area measures 38.0x16.0 millimeters, providing ample space for essential information to be displayed clearly and legibly.
Each character is designed with a size of 2.96x5.56 millimeters, ensuring clear and easily readable characters, even in small spaces.
With a pixel size of 0.56x0.66 millimeters and a pixel pitch of 0.60x0.70 millimeters, the display delivers sharp and well-defined details, enhancing the overall visual quality.
