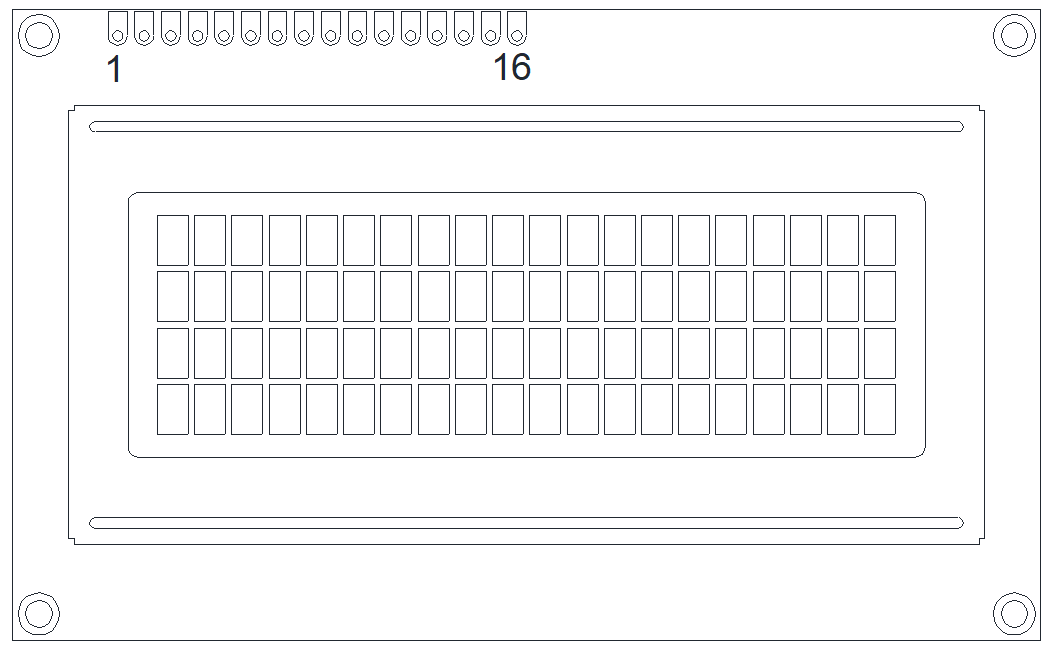

PLC2004AW
|
Item |
Contents |
Unit |
|
Display format |
20 Characters x 4 Lines |
-- |
|
LCD duty |
1/16 |
-- |
|
LCD bias |
1/5 |
-- |
|
LCD voltage |
4.3 |
V |
|
Controller/Driver |
ST7066U or Equivalent |
-- |
|
Module size (W x H) |
98.0 x 60.0 |
mm |
|
Viewing area (W x H) |
76.0 x 25.2 |
mm |
|
Character size (W x H) |
2.95 x 4.75 |
mm |
|
Dot size (W x H) |
0.55 x 0.55 |
mm |
|
Dot pitch (W x H) |
0.60 x 0.60 |
mm |
Featuring a 20-character x 4-line format, this display provides ample space to showcase your content, making it ideal for various applications requiring extensive information display.
With a 1/16 LCD working cycle and 1/5 LCD field bias, this display ensures smooth transitions and flicker-free visuals, offering a comfortable viewing experience for your audience.
Operating at 4.3 V, this display combines high performance with energy efficiency, making it an excellent choice for power-sensitive applications.
Equipped with the reliable ST7066U controller or equivalent, you can expect seamless data processing and real-time updates, ensuring efficient and reliable display operations.
The display's module size of 98.0x60.0 mm and a visible area of 76.0x25.2 mm provide a wide display area, allowing you to present your content with clarity and precision.
Each character measures 2.95x4.75 mm, ensuring legible and sharp text, while the pixel size of 0.55x0.55 mm and pixel pitch of 0.60x0.60 mm guarantee clear and detailed visuals.
