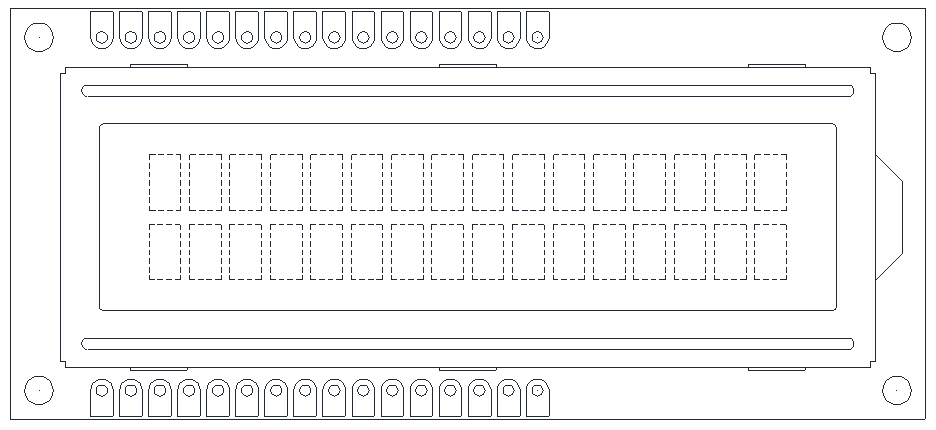

PLC1602F1W

Model:PLC1602F1W
Download

Item

Contents

Unit

Display format

16 Characters x 2 Lines

--

LCD duty

1/16

--

LCD bias

1/5

--

LCD voltage

4.5

V

Controller/Driver

ST7066U or Equivalent

--

Module size (W x H)

80.0 x 36.0

mm

Viewing area (W x H)

64.5 x 16.4

mm

Character size (W x H)

3.00 x 5.23

mm

Dot size (W x H)

0.56 x 0.61

mm

Dot pitch (W x H)

0.61 x 0.66

mm



Enhance your data presentation with our Monochrome LCM_Character Type Display. Featuring a 16-character x 2-line format, it offers a comprehensive view of crucial information.

With a 1/16 LCD working cycle and a 1/5 LCD field bias, our display ensures smooth performance without flickering. Operating at 4.5 V, it optimizes power consumption for prolonged use.

Equipped with the ST7066U controller or an equivalent product, it guarantees precise and reliable data presentation.

The 80.0x36.0 mm module size and 64.5x16.4 mm visible area provide ample space for clear and legible display.

Each character measures 3.00x5.23 mm, ensuring readability even in limited space. With a pixel size of 0.56x0.61 mm and a pixel pitch of 0.61x0.66 mm, our display delivers sharp and well-defined details.
