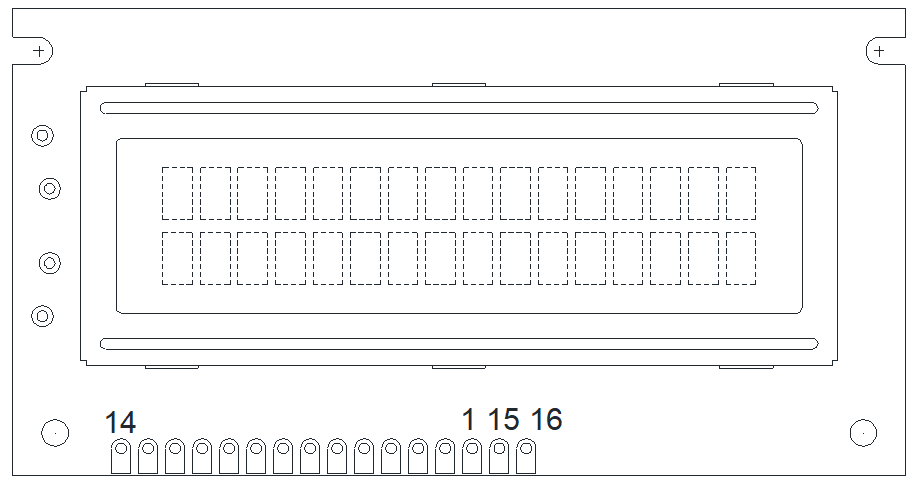

PLC1602D1W

Model:PLC1602D1W
Download

Item

Contents

Unit

Display format

16 Characters x 2 Lines

--

LCD duty

1/16

--

LCD bias

1/5

--

LCD voltage

4.4

V

Controller/Driver

ST7066U or Equivalent

--

Module size (W x H)

84.0 x 44.0

mm

Viewing area (W x H)

64.5 x 16.4

mm

Character Size (W x H)

3.00 x 5.23

mm

Dot size (W x H)

0.56 x 0.61

mm

Dot pitch (W x H)

0.61 x 0.66

mm



Experience superior data visualization with our Monochrome LCM_Character Type Display. This display format features 16 characters in 2 rows, providing a comprehensive view of essential data.

With a 1/16 LCD working cycle and a 1/5 LCD field bias, our display ensures smooth and reliable performance. Operating at 4.4 V, it optimizes power consumption for prolonged usage.

Equipped with the ST7066U controller or an equivalent product, it guarantees precise and accurate data presentation.

The 84.0x44.0 mm module size and 64.5x16.4 mm visible area offer ample space for clear and legible display.

Each character measures 3.00x5.23 mm, ensuring readability even in limited space. With a pixel size of 0.56x0.61 mm and a pixel pitch of 0.61x0.66 mm, our display delivers sharp and well-defined details.
