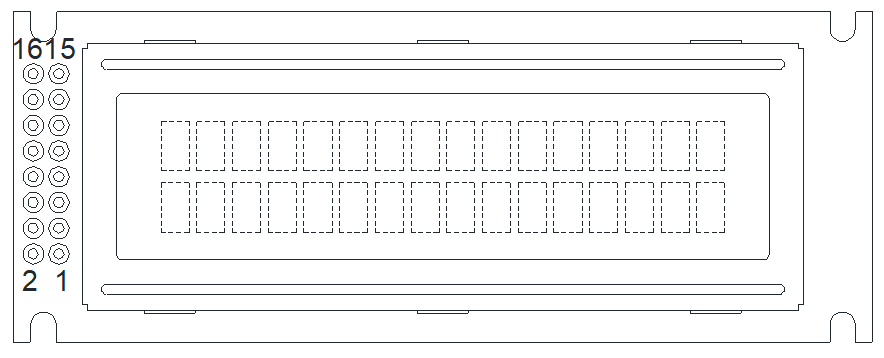

PLC1602A1W
|
Item |
Contents |
Unit |
|
Display format |
16 Characters x 2 Lines |
-- |
|
LCD duty |
1/16 |
-- |
|
LCD bias |
1/5 |
-- |
|
LCD voltage |
4.4 |
V |
|
Controller/Driver |
ST7066U or Equivalent |
-- |
|
Module size (W x H) |
85.0 x 32.6 |
mm |
|
Viewing area (W x H) |
64.5 x 16.4 |
mm |
|
Character size (W x H) |
3.00 x 5.23 |
mm |
|
Dot size (W x H) |
0.56 x 0.61 |
mm |
|
Dot pitch (W x H) |
0.61 x 0.66 |
mm |
Discover the precision and clarity of our Monochrome LCM_Character Type Display. With a format of 16 characters in 2 rows, it offers a comprehensive view of essential data.
Featuring a 1/16 LCD working cycle and a 1/5 LCD field bias, this display ensures smooth and reliable performance. Operating at 4.4 V, it optimizes power consumption for prolonged usage.
Equipped with the ST7066U controller or an equivalent product, it guarantees precise and accurate data presentation.
The 85.0x32.6 mm module size and 64.5x16.4 mm visible area provide ample space for clear and legible display.
Characters measure 3.00x5.23 mm, ensuring readability even in limited space. With a pixel size of 0.56x0.61 mm and a pixel pitch of 0.61x0.66 mm, the display delivers sharp and well-defined details.
