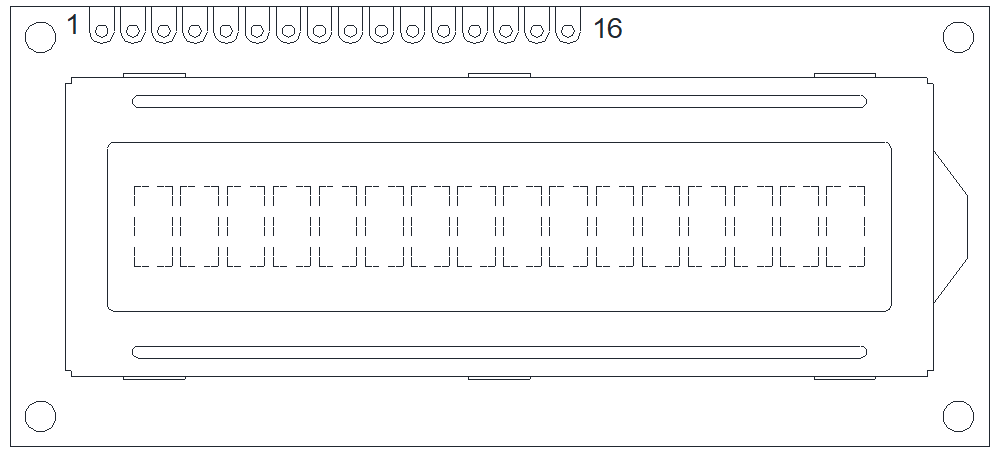

PLC1601BW
|
Item |
Contents |
Unit |
|
Display format |
16 Characters x 1 Line |
-- |
|
LCD duty |
1/16 |
-- |
|
LCD bias |
1/5 |
-- |
|
LCD voltage |
4.5 |
V |
|
Controller/Driver |
ST7066U or Equivalent |
-- |
|
Module size (W x H) |
80.0 x 36.0 |
mm |
|
Viewing area (W x H) |
64.5 x 13.8 |
mm |
|
Character size (W x H) |
3.07 x 6.56 |
mm |
|
Dot size (W x H) |
0.55 x 0.75 |
mm |
|
Dot pitch (W x H) |
0.63 x 0.83 |
mm |
Featuring a display format of 16 characters in one row, this module provides a comprehensive and organized presentation of crucial data, ensuring seamless monitoring and control.
With a 1/16 LCD working cycle and a 1/5 LCD field bias, this display ensures smooth and reliable performance, delivering consistent visuals without flickering or distortion.
Operating at 4.5 V, the LCD work voltage is optimized for efficient power consumption, allowing for extended usage time without frequent recharging.
Equipped with the ST7066U controller and driver, this display guarantees precise and reliable control, ensuring smooth and accurate data presentation.
With a module size of 80.0x36.0 millimeters, the display module offers ample screen space, making it suitable for applications requiring detailed information display.
The visible area measures 64.5x13.8 millimeters, providing sufficient space for essential information to be displayed clearly and legibly.
Each character is designed with a size of 3.07x6.56 millimeters, ensuring clear and easily readable characters, even from a distance.
With a pixel size of 0.55x0.75 millimeters and a pixel pitch of 0.63x0.83 millimeters, the display delivers sharp and well-defined details, enhancing the overall visual quality.
