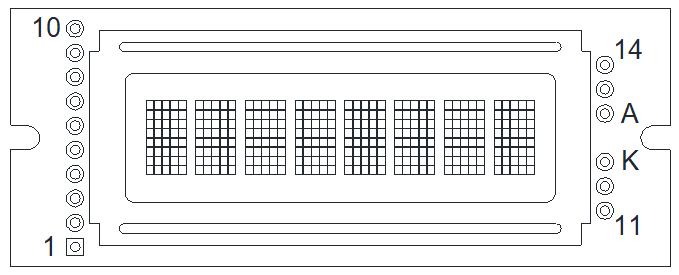

PLC0801BW
|
Item |
Contents |
Unit |
|
Display format |
8 Characters x 1 Lines |
-- |
|
LCD duty |
1/16 |
-- |
|
LCD bias |
1/5 |
-- |
|
LCD voltage |
4.4 |
V |
|
Controller/Driver |
ST7066U or Equivalent |
-- |
|
Module size (W x H) |
69.0 x 27.0 |
mm |
|
Viewing area (W x H) |
45.2 x 13.5 |
mm |
|
Character size (W x H) |
4.20 x 7.71 |
mm |
|
Dot size (W x H) |
0.80 x 0.92 |
mm |
|
Dot pitch (W x H) |
0.85 x 0.97 |
mm |
The display format features 8 characters in one row, providing you with a concise and easily readable output for essential data.
With a 1/16 LCD working cycle and a 1/5 LCD field bias, this display ensures smooth and reliable performance, minimizing flickering and ensuring consistent visuals.
Operating at 4.4 V, the LCD work voltage is optimized for efficient power consumption, allowing for prolonged usage without frequent recharging.
Equipped with the ST7066U controller or an equivalent product, this display ensures reliable and precise control, guaranteeing smooth and accurate data presentation.
With a module size of 69.0x27.0, the display module is compact and easy to integrate into your device, making it an ideal choice for space-limited applications.
The visible area measures 45.2x13.5, providing ample space for essential information to be displayed clearly and legibly.
Each character is designed with a size of 4.20x7.71, ensuring clarity and readability even with a limited display space.
The pixel size of 0.80x0.92 and pixel pitch of 0.85x0.97 further enhance the visual quality of the characters, delivering crisp and well-defined details.
