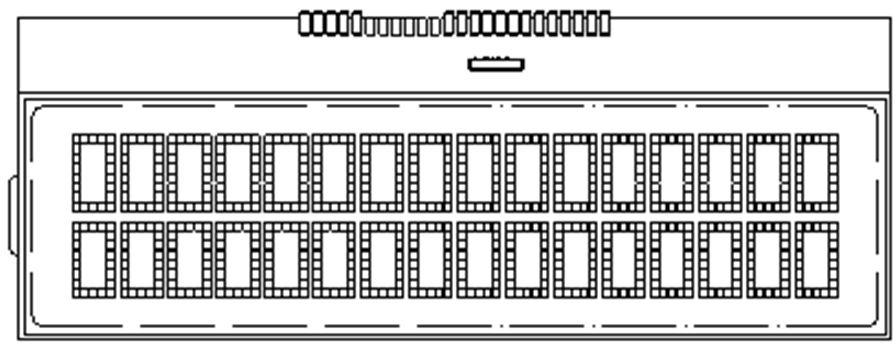

PHC1602E
|
Item |
Contents |
Unit |
|
Display format |
16 Characters x 2 Lines |
-- |
|
LCD duty |
1/16 |
-- |
|
LCD bias |
1/5 |
-- |
|
LCD voltage |
5.0 |
V |
|
Controller/Driver |
ST7032i |
-- |
|
Module size (W x H) |
85.0 x 31.7 |
mm |
|
Viewing area (W x H) |
82.4 x 21.6 |
mm |
|
Character size (W x H) |
4.1 x 7.55 |
mm |
|
Dot size (W x H) |
0.78 x 0.90 |
mm |
|
Dot pitch (W x H) |
0.83 x 0.95 |
mm |
Experience superior data visualization with our Monochrome LCM_Character Type Display. With a format of 16 characters in 2 rows, this display offers a comprehensive view of essential information.
Featuring a 1/17 LCD working cycle and a 1/5 LCD field bias, it ensures smooth and reliable performance without flickering. Operating at 5.0 V, it optimizes power consumption for prolonged usage.
Equipped with the ST7032i controller, it guarantees precise data presentation. The 85.0x31.7 mm module size and 82.4x21.6 mm visible area provide ample space for clear and legible display.
Characters measure 4.1x7.55 mm, ensuring readability even from a distance. With a pixel size of 0.78x0.90 mm and a pixel pitch of 0.83x0.95 mm, the display delivers sharp and well-defined details.
