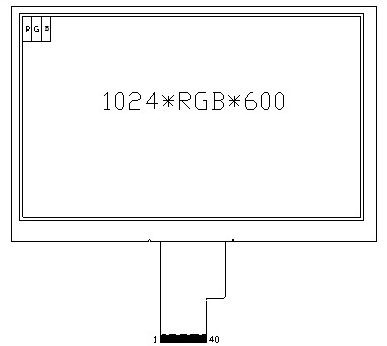

7.0"tft lcd module pt07010260-c4 series
|
Item |
Contents |
Unit |
|
Diagonal |
7.0" |
-- |
|
Display format |
1024 × RGB ×600 |
Pixels |
|
Viewing direction |
12 |
U/D/L/R |
|
Controller/Driver |
HX8282/HX8677 |
-- |
|
Module size (W x H x T) |
165.75×105.39 ×3.8 |
mm |
|
Active area (W x H) |
153.6× 90.0 |
mm |
|
Pixel pitch (W x H) |
0.15× 0.15 |
mm |
|
Display colors |
16.7M |
colors |
|
Interface |
LVDS |
-- |
