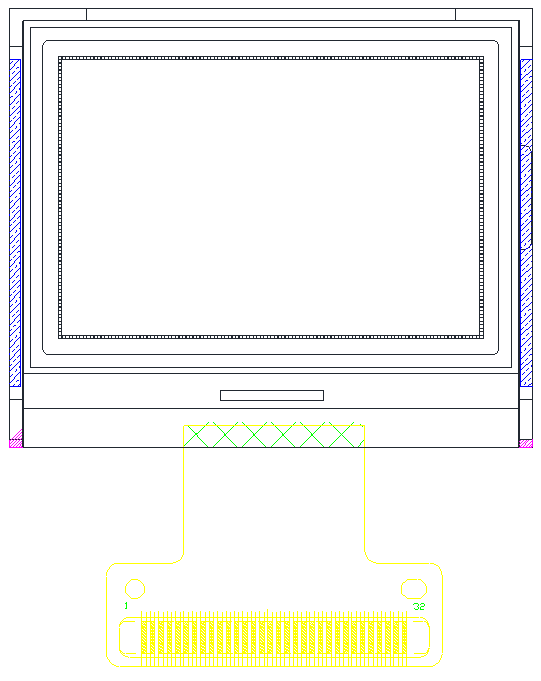

128x80 graphic lcd display module
|
Item |
Contents |
Unit |
|
Display format |
128 × 80 |
dots |
|
LCD duty |
1/80 |
-- |
|
LCD bias |
1/8 |
-- |
|
LCD voltage |
8.7 |
V |
|
Controller/Driver |
ST7571 |
-- |
|
Module size (W x H) |
40.5 × 34.0 |
mm |
|
Viewing area (W x H) |
35.3 × 24.34 |
mm |
|
Dot size (W x H) |
0.259 × 0.259 |
mm |
|
Dot pitch (W x H) |
0.274 × 0.274 |
mm |
